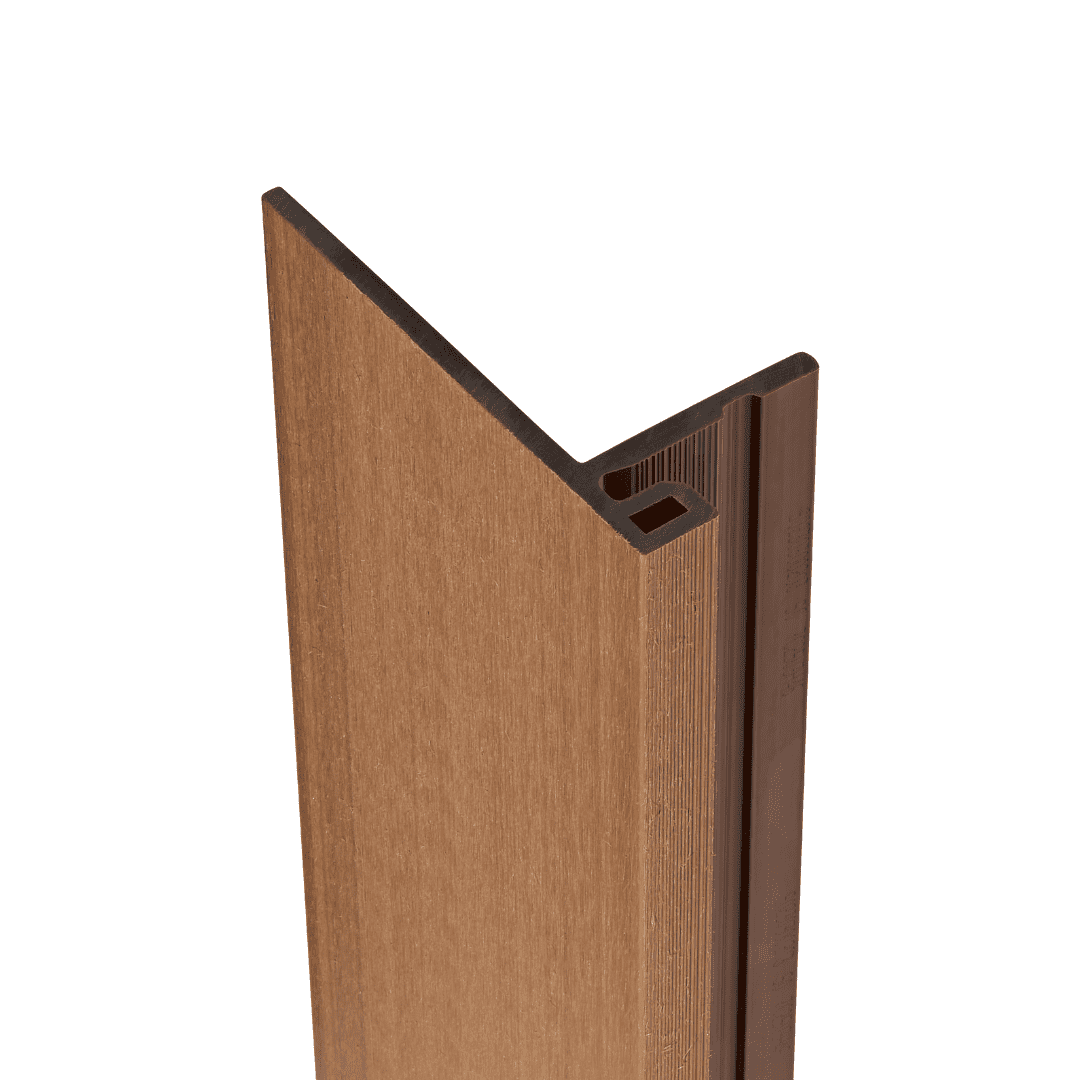

Slatted Reveal Trim

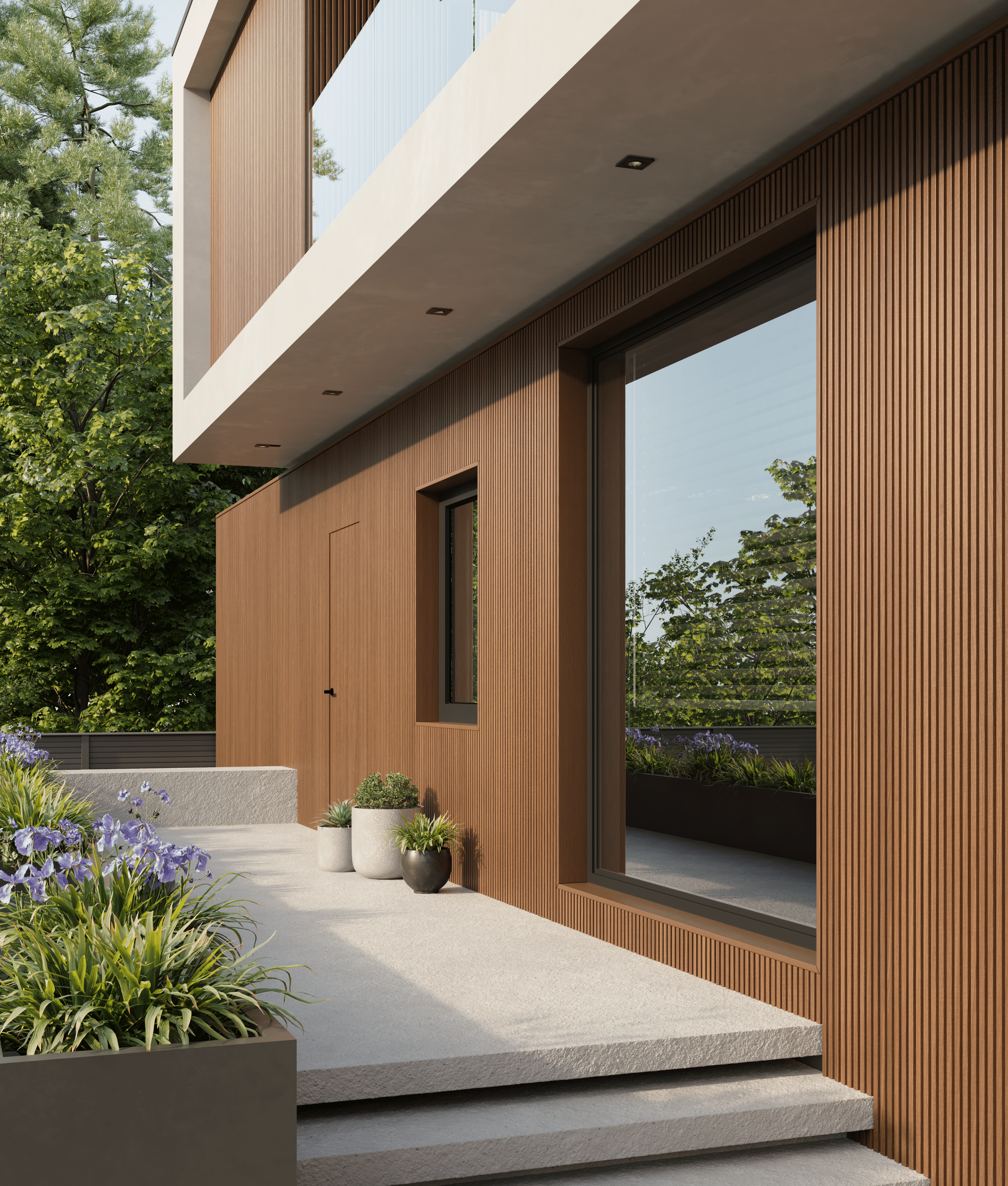

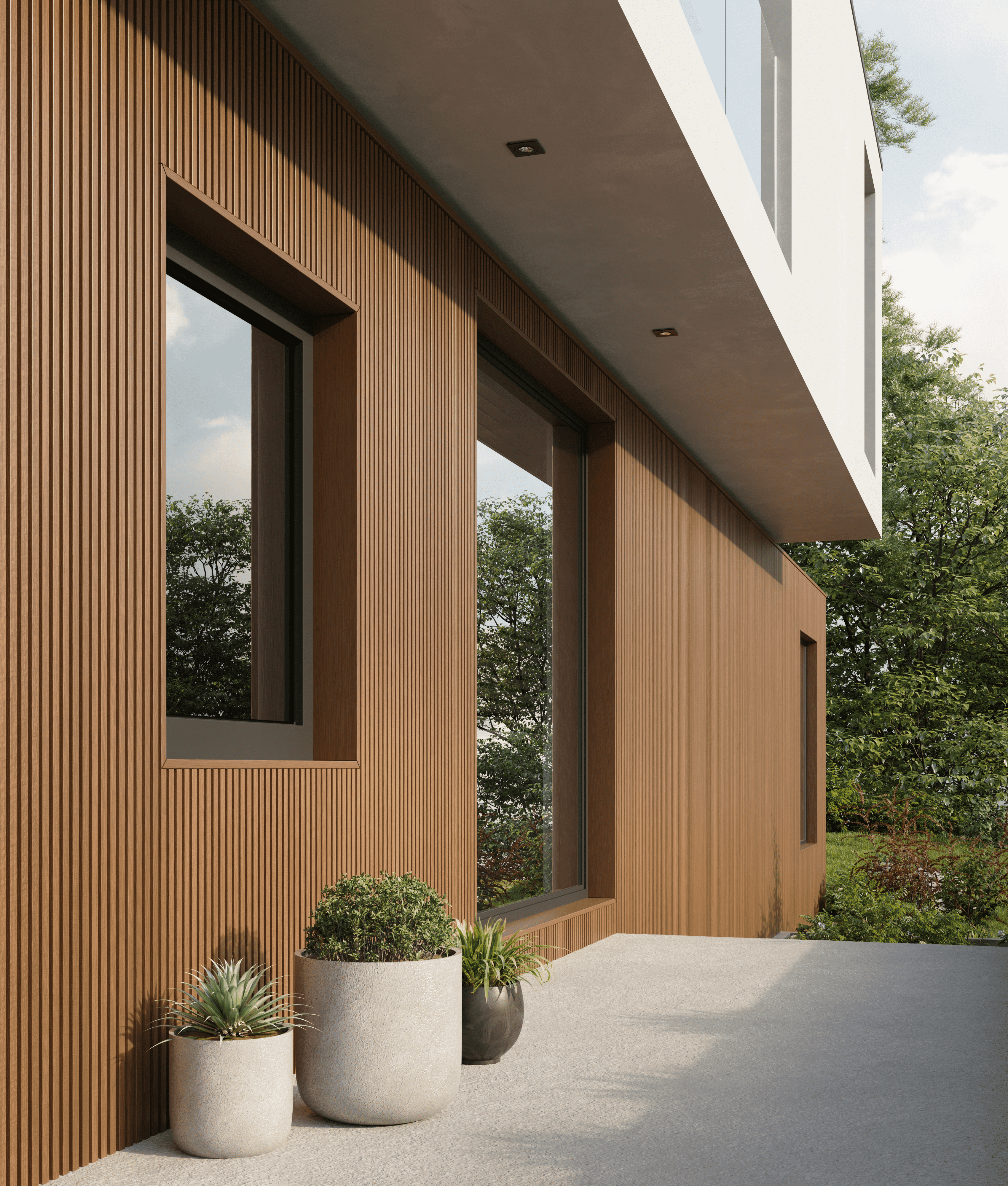

The Ecoscape Slatted Cladding Reveal Trim is designed to enable the perfect matching finish for your composite cladding around window and door reveals. Much like our Slatted Cladding End Trim, but with an extended return, can be easily cut down to clad deep or shallow reveals around windows and doors, or to finish back to the wall structure where cross-battens, or thicker battens are used to support your cladding. Available in the full range of colours, and installed using our easy, hidden fixing system.
From £40.74

Specification

Range Forma
Colours Midnight, Silver Birch, Spiced Oak
Product Code ECOSLAT_RT MD/AR/FL/SB/SO/HA
Finish Capped/Brushed
Trim Width 75x160mm
Trim Length 3600mm
Trim Thickness 7mm
Trim Weight 4.84kg
Fixing Method Pre-drill and countersink screws into timber, plastic or aluminium substructure. Stainless steel screw grade 316 advised.
Warranty 25 Years
Key Benefits Can be used around windows, doors, as a starter trim when laying vertically and at the end of cladding boards. Please refer to our installation guide.
